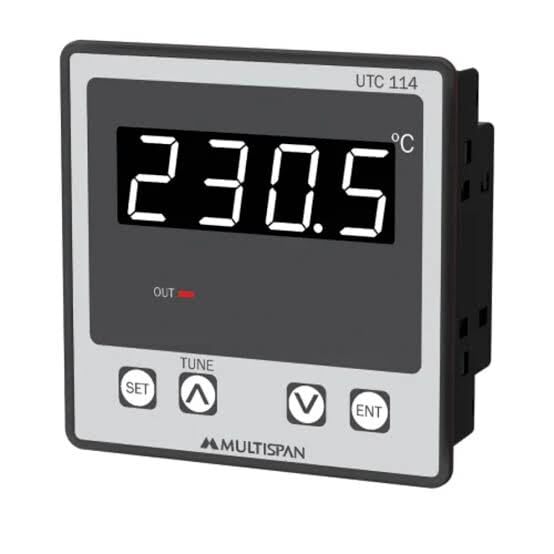

पैनल माउंट टेम्परेचर कंट्रोलर

उत्पाद वर्णन

Owing to our stringent quality testing, we are able to manufacture and supply an excellent stock of Panel Mount Temperature Controllers. We manufacture controllers in compliance with the latest technology using finest quality materials and components, sourced from the most reliable vendors. Checked on quality and durability parameters by the quality analysts, our controllers are available in different models and specifications for the clients. We offer our Panel Mount Temperature Controllers at the pocket friendly prices.

Features:

• Easy to use

• Longer working life

• Compact design


Athena C Series

Athena's Platinum Series X400 provides a high degree of functionality and reliability in a low priced, 1/8 DIN (48 x 96 mm) size panel-mounted controller that can be configured to meet most heat/cool control applications. Standard features include auto-tune software, auto/man key, four outputs, three digital inputs, IP65 front panel protection, current transformer input, and auxiliary power supply. Available options include serial communications, analog control or retransmission output, special start-up and timer functions, two front bezel colors, valve drive output, and an eight segment setpoint program. Some of these options are mutually exclusive.

Platinumâ„¢ Series X400 Controller

Athena’s Platinum Series X400 provides a high degree of functionality and reliability in a low priced, 1/8 DIN (48 x 96 mm) size panel-mounted controller that can be configured to meet most heat/cool control applications. Standard features include auto-tune software, auto/man key, four outputs, three digital inputs, IP65 front panel protection, current transformer input, and auxiliary power supply. Available options include serial communications, analog control or retransmission output, special start-up and timer functions, two front bezel colors, valve drive output, and an eight segment setpoint program. Some of these options are mutually exclusive.

Series 18C/19C/25C DIN Temperature/Process Controller

The Athena 18C and 19C are available as 1/8 DIN (18C) vertical or 1/8 DIN (19C) horizontal models. Both panel mounted, auto-tuning controllers can be used for precise control of a single loop with two independent outputs field-configurable as direct acting, reverse acting, and 2 alarms. RS-232 or RS-485 communications interfaces are available for both models, and two digital LED displays provide visual indication of various controller functions.

Series 16C DIN Temperature/Process Controller

The Athena 16C is a 1/16 DIN panel mounted, autotuning controller that can be used for precise control of a single loop with two independent outputs fieldconfigurable as direct acting, reverse acting or alarm. RS-232 or RS-485 communications interfaces are available, and two digital LED displays provide visual indication of various controller functions.

Field-Configurable Universal Inputs
User-Selectable Ramp to Setpoint
8-Level Ramp/Soak Control
Bumpless Auto/Manual Transfer
NEMA 4X (IP65) Dust and Splash-Proof Front Panel
Decimal Display in 0.1° for Measured Temperatures Under 1000° F or C
On/Off Through Full PID Operation (P, PI, PD, PID)
Adjustable Hysteresis and Deadband
Outputs Configurable as Alarms
Field-Configurable Process or Deviation Alarms; Latching or Non-Latching; Band and Inverse Band
Dual Output/Dual Alarm Capabilities
UL, cUL, and CE Approvals
Options Include Multi-Function Contact/Digital Input, Transducer Excitation, and Auxiliary Output
Special and Custom Options Available
DIN Rail Option

Series 18C/19C/25C DIN Temperature/Process Controller

The Athena 18C and 19C are available as 1/8 DIN (18C) vertical or 1/8 DIN (19C) horizontal models. Both panel mounted, auto-tuning controllers can be used for precise control of a single loop with two independent outputs field-configurable as direct acting, reverse acting, and 2 alarms. RS-232 or RS-485 communications interfaces are available for both models, and two digital LED displays provide visual indication of various controller functions.
